A20-34 S EVO kv1500
A20-34 S EVO kv1500
Item No. 97800002
EAN: 4250320200574
$65.10
In stock
A20-34 S EVO kv1500
Product description and features
The 8, 10 and 14-pole outrunner motors of the A20 series are available in 4 lengths (S, M, L, XL), with a voltage range of 7.2V to 12.6V. As a result, they cover a wide range of applications from the 250g indoor model up to the 1.5kg electric glider. The A20 series is double ball bearing mounted, has an interchangeable 3mm shaft and can be front or back mounted.

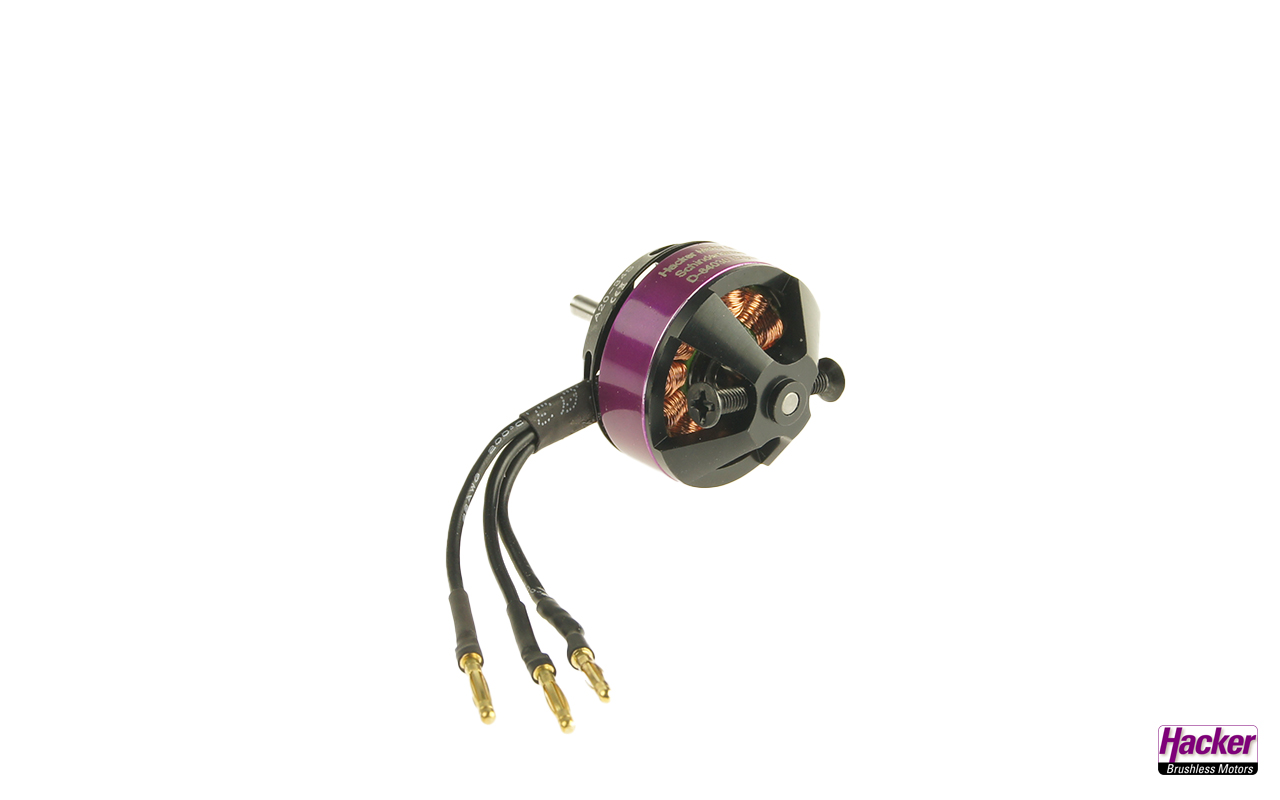

The weight-optimised high-end motor A20-34 S EVO kv1500 with a weight of only 29g is perfectly suited for indoor 3D models up to 250g.
Accessories
You will find the appropriate controller, batteries and a suitable propeller in the accessories tab.
Delivery contents

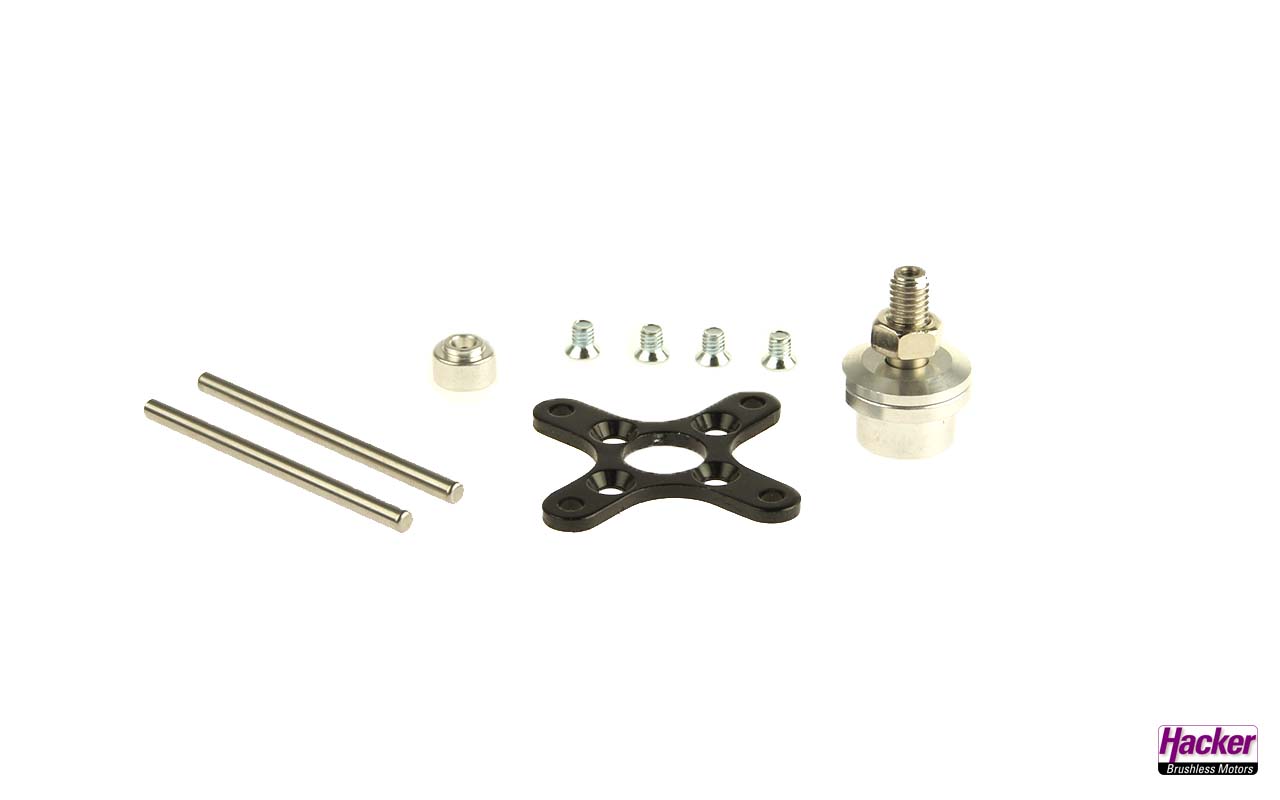

1x A20-34 S EVO kv1500, accessories for front and backmount, prop driver and instructions.

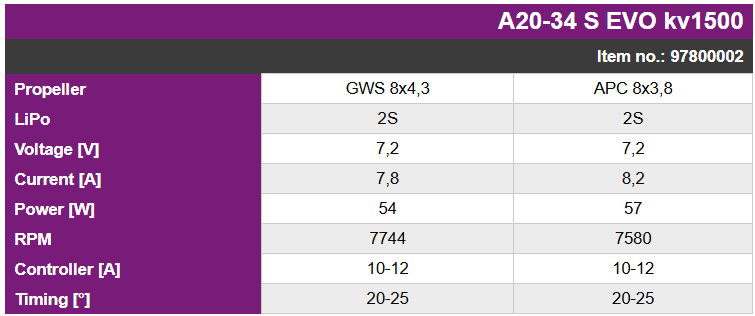

Drive Recommendations
| Specifications | |
| max. power range [W] (max.15 sec.) | max. 100 (15 Sekunden) |
| Poles | 14 |
| Idle current (I0) at 8.4V [A] | 0.75 |
| Internal resistance (Ri) [Ohm] | 0.147 |
| Recommended timing [°] | 20 – 25 |
| Controller recommendation [A] (depending on setup) | 4A bis 7A Brushless |
| Idle speed per volt (kv) | 1500 rpm |
| Dimensions and weight | |
| Weight [g] | 29 |
| Length [mm] | 24 |
| Outer diameter [mm] | 28 |
| Shaft diameter [mm] | 3 |
| Delivery contents | |
| Prop Adapter | Yes |
| Mounting cross | Yes |
| Gold plug mm (soldered) | 2 |
| Back mountable | shaft conversion required |
| Front mountable | Yes |
