Q80-13S 28-Pole kv175
Q80-13S 28-Pole kv175
Item No. 38798470
EAN: 4250320231660
$638.20
Description
Product Data
Video
Accessories
Description
Q80-13S 28pol
Technical Data
Power range: max. 3000W (15 sec.)
No-load current @8.4V: 1.3A
Internal resistance: 0.029 Ohm
Idle speed per volt: 175 RPM
Weight: 610g / 1.34 lb.
Outer diameter: 88.5 mm / 3.48 in.
Length: 69 mm / 2.72 in.
Poles: 28
Recommended ESC: MasterSpin 99 Opto
Recommended timing: 25°
ESC frequency: 8kHz
No-load current @8.4V: 1.3A
Internal resistance: 0.029 Ohm
Idle speed per volt: 175 RPM
Weight: 610g / 1.34 lb.
Outer diameter: 88.5 mm / 3.48 in.
Length: 69 mm / 2.72 in.
Poles: 28
Recommended ESC: MasterSpin 99 Opto
Recommended timing: 25°
ESC frequency: 8kHz

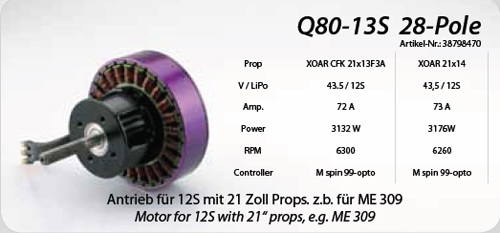

Typical Setups
Product Data
| Specifications | |
| max. power range [W] (max.15 sec.) | 3000 |
| Poles | 28 |
| Turns | 13 |
| Idle current (I0) at 8.4V [A] | 1.3 |
| Internal resistance (Ri) [Ohm] | 0.029 |
| Recommended timing [°] | 25 |
| Switching Frequency [kHz] | 8 |
| Controller recommendation [A] (depending on setup) | 99 – 125 |
| Idle speed per volt (kv) | 175 |

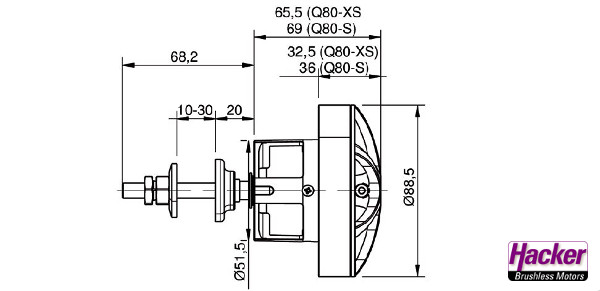

| Dimensions and weight | |
| Weight [g] | 610 |
| Length [mm] | 69 |
| Outer diameter [mm] | 88.5 |
| Shaft diameter [mm] | 8 |
| Delivery contents | |
| Prop Adapter | yes |
| Gold plug mm (soldered) | 4 |
| Backmount mountable | no |
| Front mountable | yes |
Video
Windex C1200 + Q80-13S 28 pole
https://youtu.be/0svX381-cLM
