E10-36L kv4300
E10-36L kv4300
Item No. 45716003
EAN: 4250320202363
$45.50
Description
Product Data
Description
E10-36L kv4300
Product description and features
Optimum drive for small GWS impellers such as the EDF 40.
The E10 series motors are our smallest internal rotor motors. With small models, every gram counts and there can never be enough power. This small motor is used in small GWS impeller models or in boats. Alternatively, a GWS propeller can also be used with the propeller adapter. The 2-pole motor is very versatile.
Accessories
Suitable speed controllers, batteries and a suitable propeller can be found under the Accessories tab.
Delivery contents

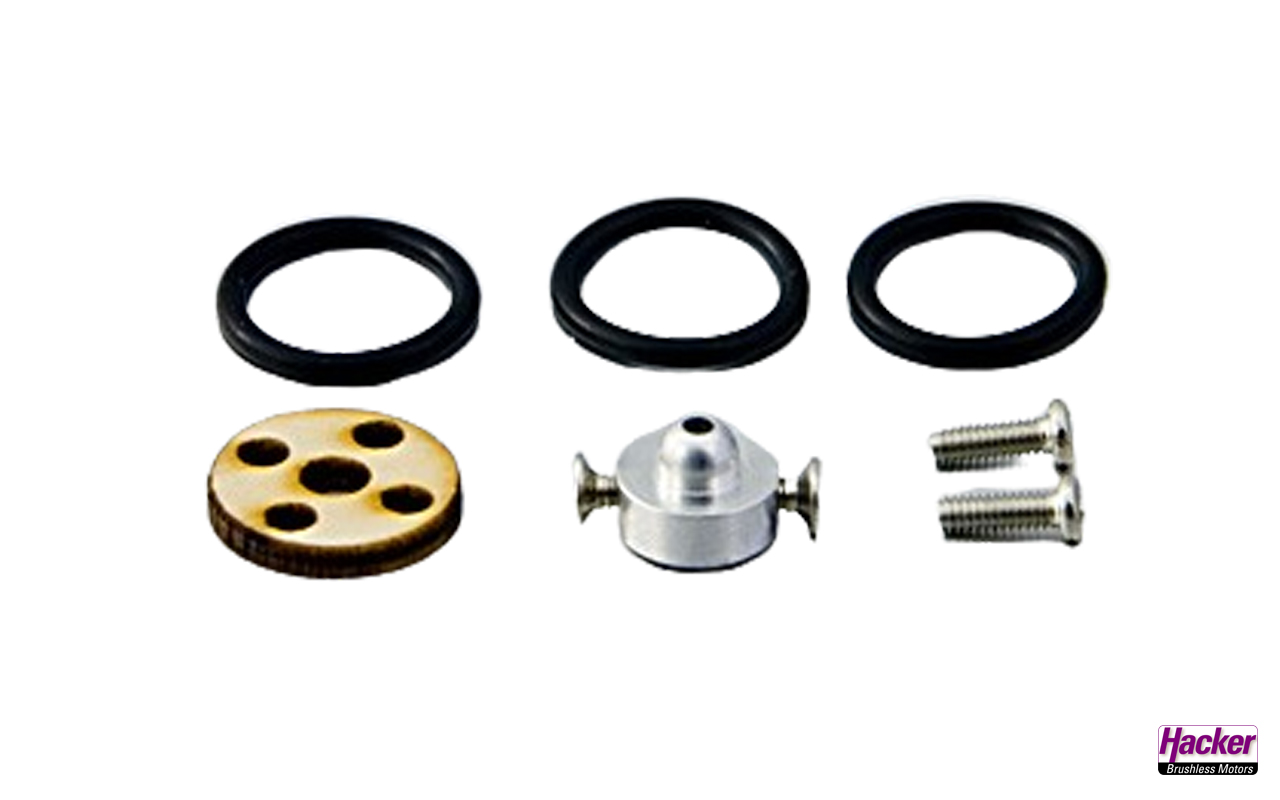

1x E10-36L kv4300, O-rings and mounting screws.

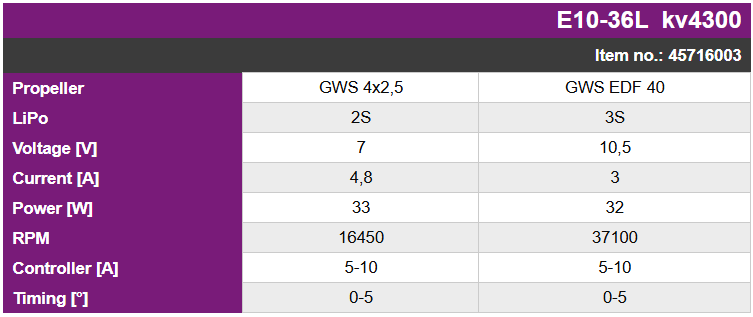

Drive recommendation
Product Data
| Specifications | |
| max. power range [W] (max.15 sec.) | 45 |
| Poles | 2 |
| Turns | 36 |
| Idle current (I0) at 8.4V [A] | 0.3 |
| Internal resistance (Ri) [Ohm] | 0.56 |
| Recommended timing [°] | 0-5 |
| Switching Frequency [kHz] | 8 |
| Controller recommendation [A] (depending on setup) | 4-7 |
| Idle speed per volt (kv) | 4300 |

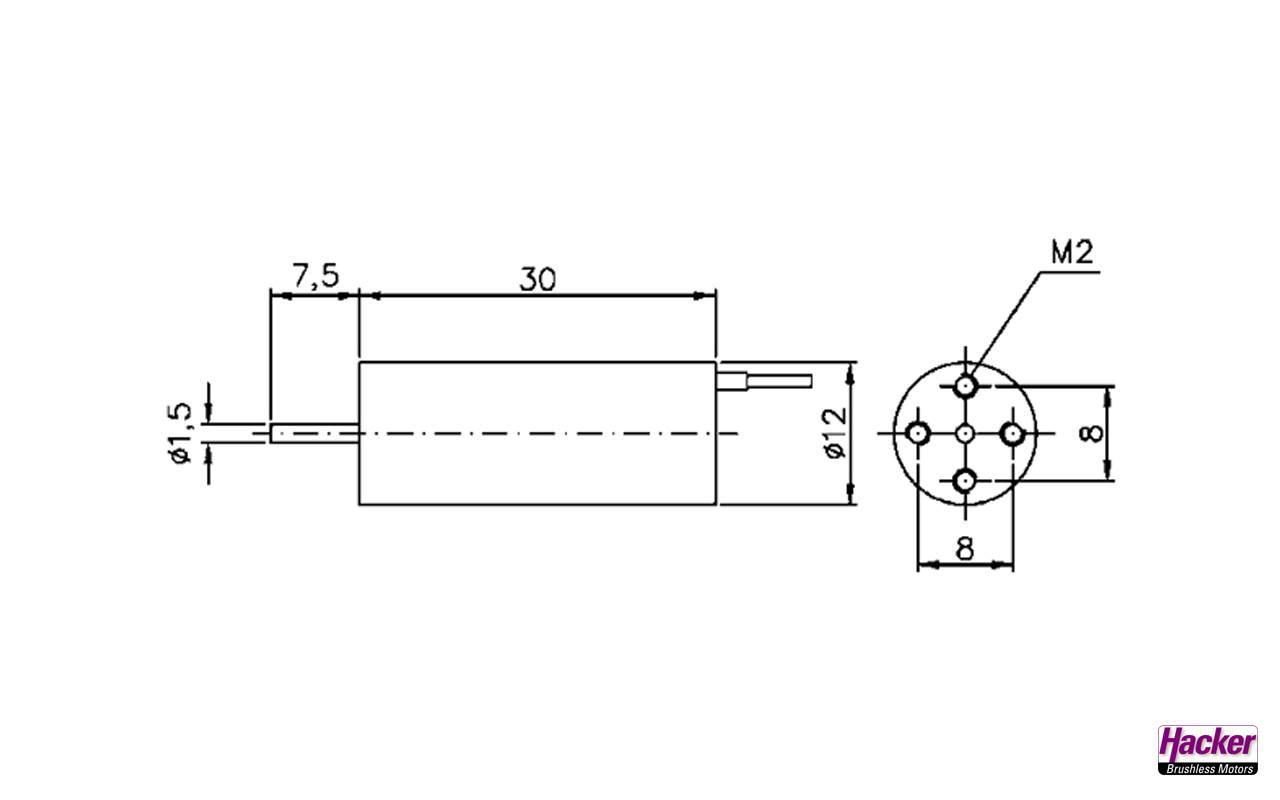

| Dimensions and weight | |
| Weight [g] | 14 |
| Length [mm]/[in] | 30 |
| Outer diameter [mm]/[in] | 12 |
| Shaft diameter [mm]/[in] | 1.5 |
| Delivery contents | |
| Gold plug mm (soldered) | 2 |
| Back mountable | no |
| Front mountable | yes |
