Chaservo HV95H

Product description and features

The HV95 is a powerful and precise HV servo that promises long and reliable precision work thanks to its robust equipment with steel gears, double ball bearings and aluminum housing. The 6mm T25 standard wear makes the servo special and allows free movement for a wide range of servo levers.

Suggested application

The Chaservo HV95 is a powerful and precise HV servo that is characterized by its compact design and high performance. It is ideal for a variety of modeling applications, including RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a small package.

Features

• Rated voltage DC 7.4V
• Voltage range DC 4.8V – 8.4V
• Output Torque
• 7.5 kg·cm @ 6.0V
• 9.3 kg·cm @ 7.4V
• 10.2 kg·cm @ 8.4V
• Holding Torque
• 8.5 kg·cm @ 6.0V
• 10.5 kg·cm @ 7.4V
• 11.5 kg·cm @ 8.4V
• Idle Speed
• 0.17sec/60° @ 6.0V
• 0.15sec/60° @ 7.4V
• 0.12sec/60° @ 8.4V
• Standard angle ±100° = 200°
• Operating frequency 1520µs/333Hz
• Operating temperature -20°C … +65°C
• Housing material Aluminium alloy
• Motor Type Coreless DC
• Gearbox material Hardened steel
• Position sensors Potentiometer
• Programmable Yes
• Ball bearing Double ball bearing
• Dimensions 30 mm x 9.5 mm x 33.5 mm
• Weight 20g

Control signal / PWM interface

Signal voltage level High: min. 3.3V, max. 5.0V
Low: min. 0.0V, max. 1.5V
Pulse range 900µs-2100µs
Pulse angel
at -60°/0°/+60°
1000µs/1500µs/2000µs

Delivery Contents

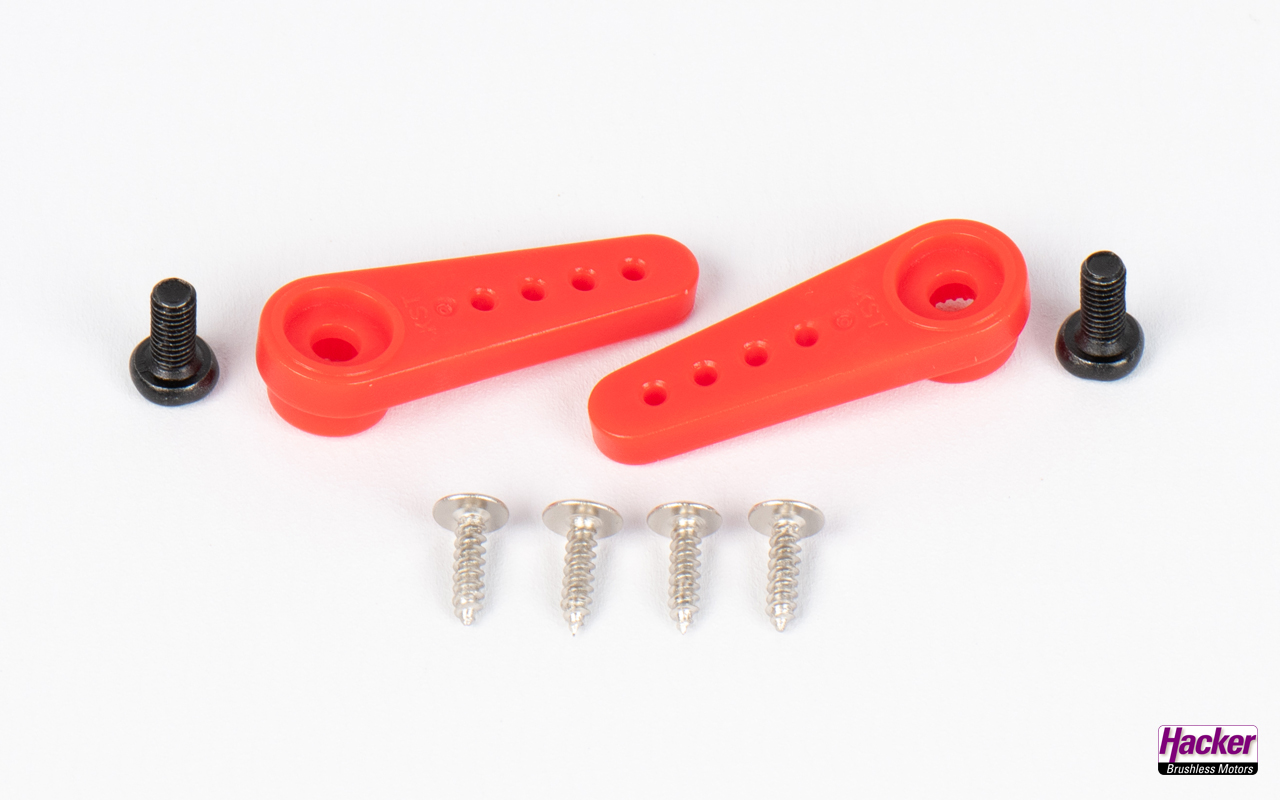

1 Chaservo HV95H, mounting material
