Absima HV Digital Alu Servo LP15DBF 15KG Race-Spec.

Technical data

Servo category: High-speed / Low-profile

Operating voltage range: 4.8–8.4V HV

Holding force @ 4.8V: 9.0kg

Holding force @ 6.0V: 12.0kg

Holding force @ 7.4V: 13.0kg

Torque @ 8.4V: 15.0kg

Speed: 0.068sec/60° @ 7.4V / 0.062sec/60° @ 8.4V

Technology: Digital

Motor type: Brushless

Gearbox: High-strength steel

Housing material: AL6061 T6 – CNC-machined with aluminium inlay

Water resistance: IP65 waterproof

Ball bearings: Metal ball bearings

Dimensions: 40.8 x 20.2 x 27.2 mm

Weight: 54.5 g

Scope of delivery

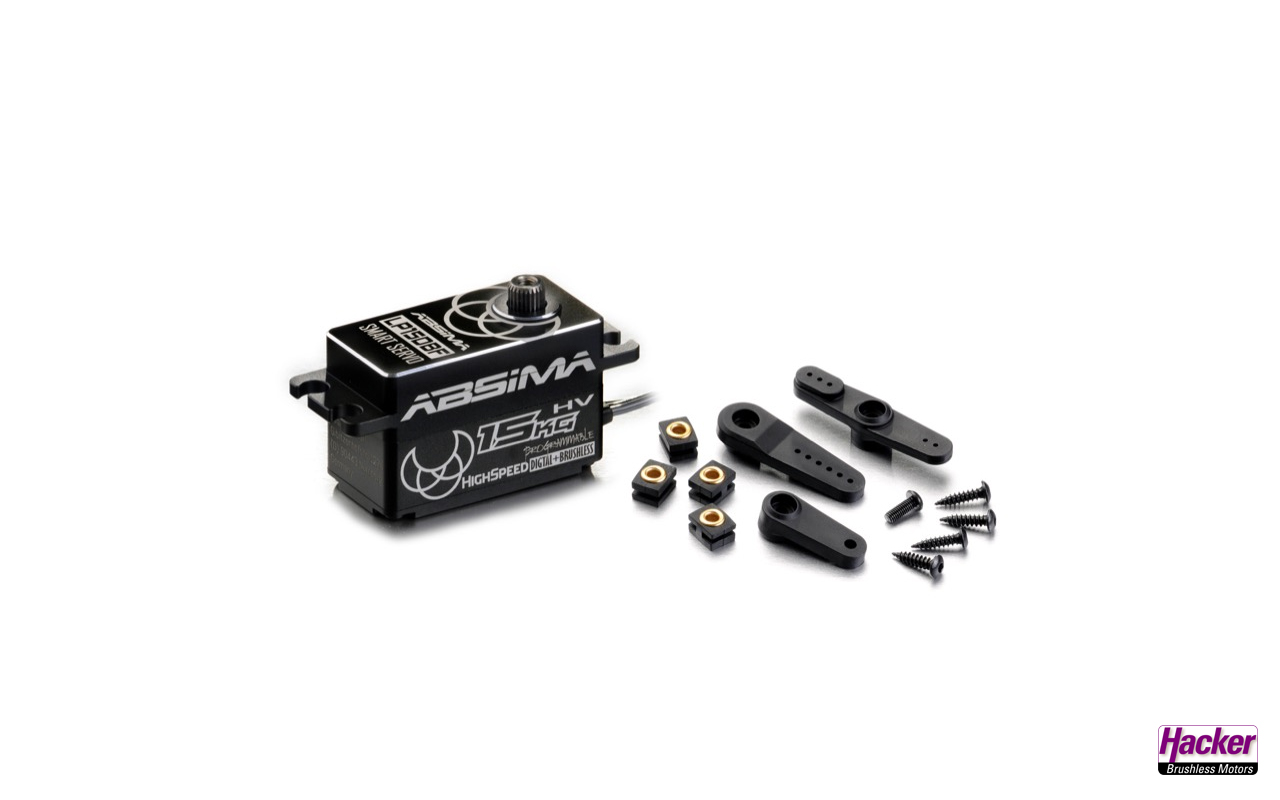

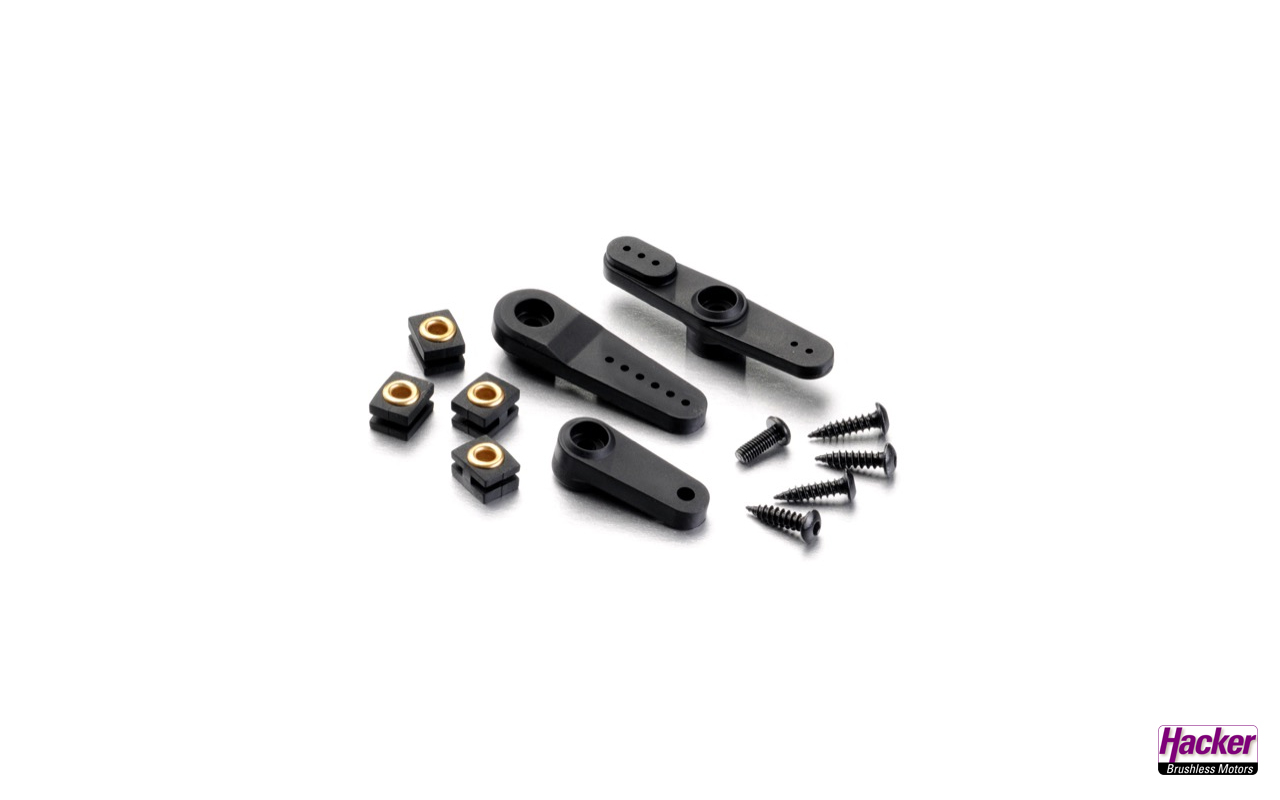

1 Absima HV Digital Alu Servo LP15DBF 15KG Race-Spec. and accessories
