A50-10 L Turnado V4 kv530
A50-10 L Turnado V4 kv530
Item No. 15726743
EAN: 4250320261841
Price range: $244.50 through $274.50
Description
Product Data
Video
Documents
Accessories
Description

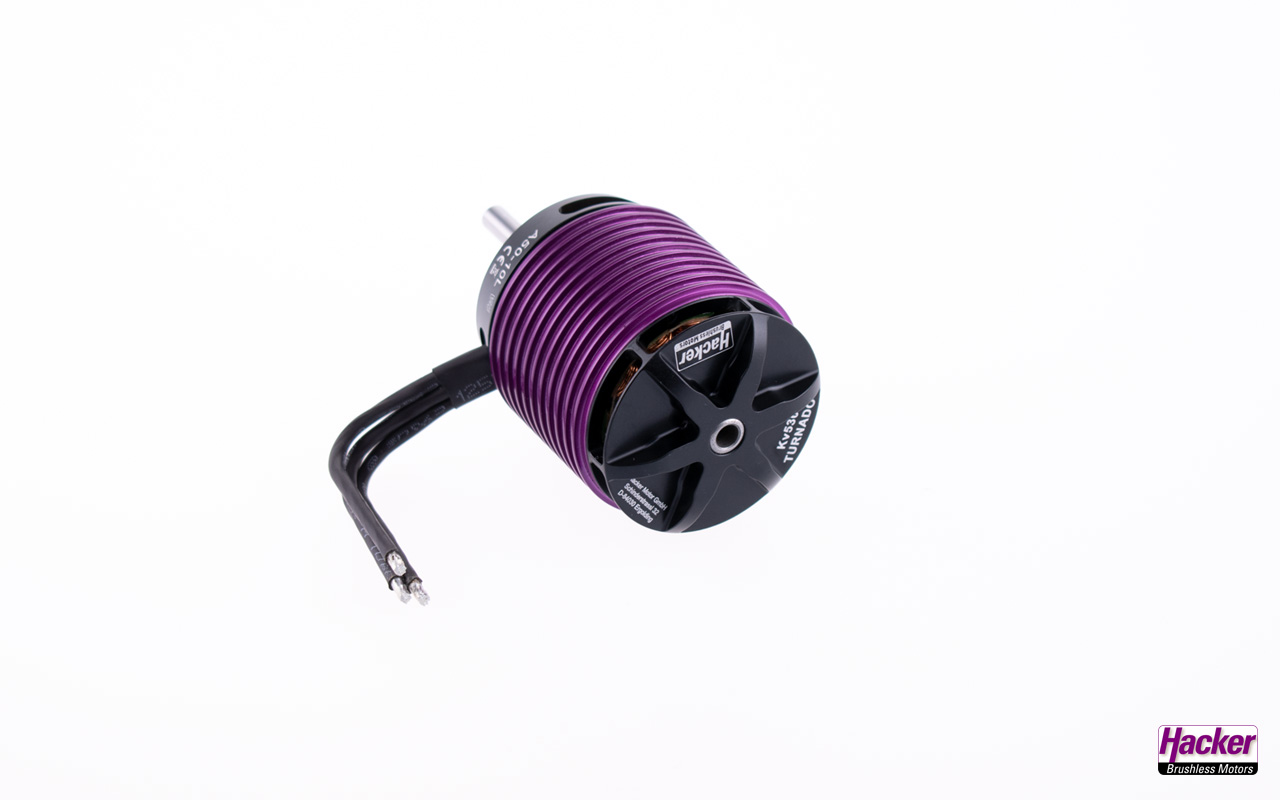

A50-10L Turnado V4 kv530
Application examples and configuration suggestions:
| R/C model type | Battery | Miscellaneous | |
|---|---|---|---|
| Helicopters | 10S to 12S | R/C models with approx. 600 to 800 millimeters (24 to 31.5 inches) rotor blade length, 3D flight. | |
| Gliders with approx. 11 kilogram (24lb) take-off weight. | 6S |
| |
| Gliders with approx. 12 kilogram (26.5lb) take-off weight. | 6S |
|
Delivery Contents

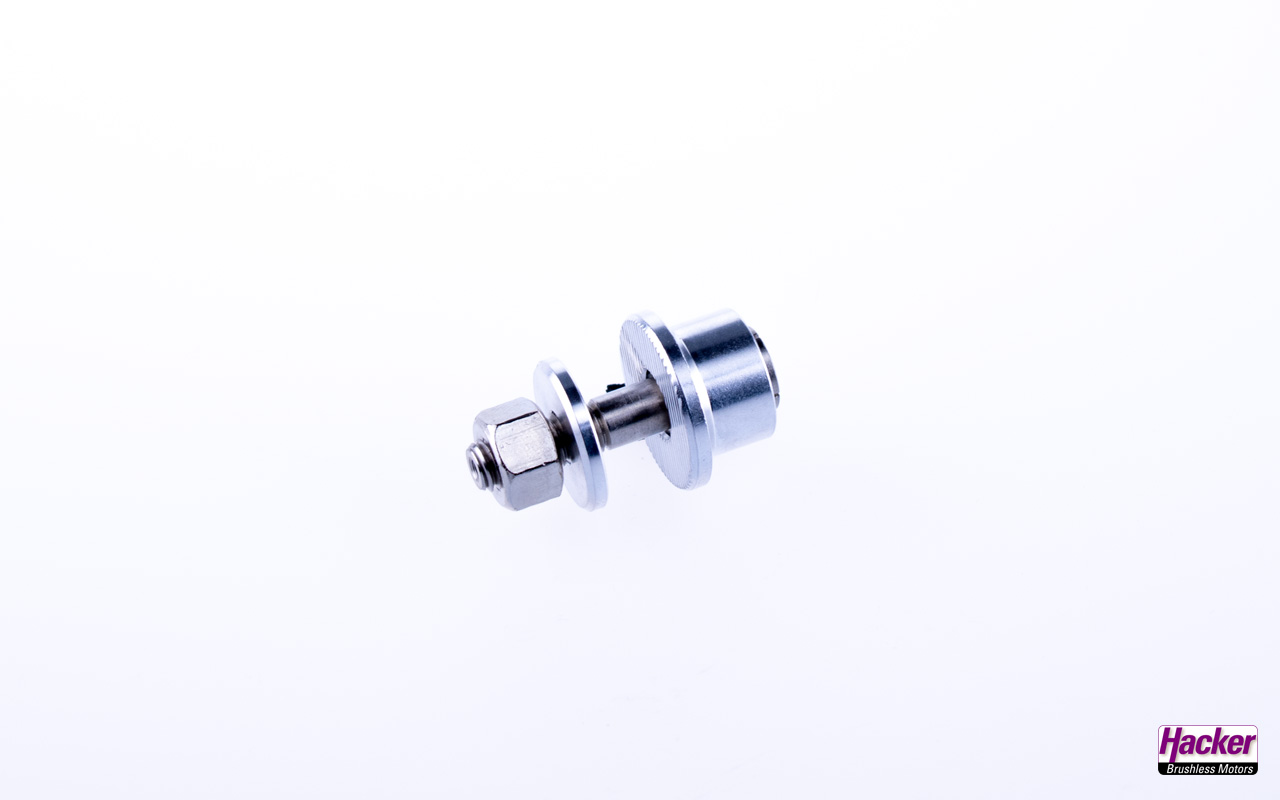

Hacker A50-10L Turnado V4 kv530, prop adapter 6.0/8.0mm and instructions. Various folding props can be used to match the particular model.
Product Data
| Propulsion suggestion | |
| Propeller | 12″-16″ |
| Specifications | |
| max. power range [W] (max.15 sec.) | 4000 |
| Poles | 10 |
| Turns | 10 |
| Idle current (I0) at 8.4V [A] | 1.9 |
| Internal resistance (Ri) [Ohm] | 0.015 |
| Output shaft | 6 |
| RPM max. | 25000 |
| Recommended timing [°] | 15 – 20 |
| Switching Frequency [kHz] | 8 |
| Controller recommendation [A] (depending on setup) | 80A – 130A Brushless |
| Idle speed per volt (kv) | 530rpm |
| max. current [A] | 85 |

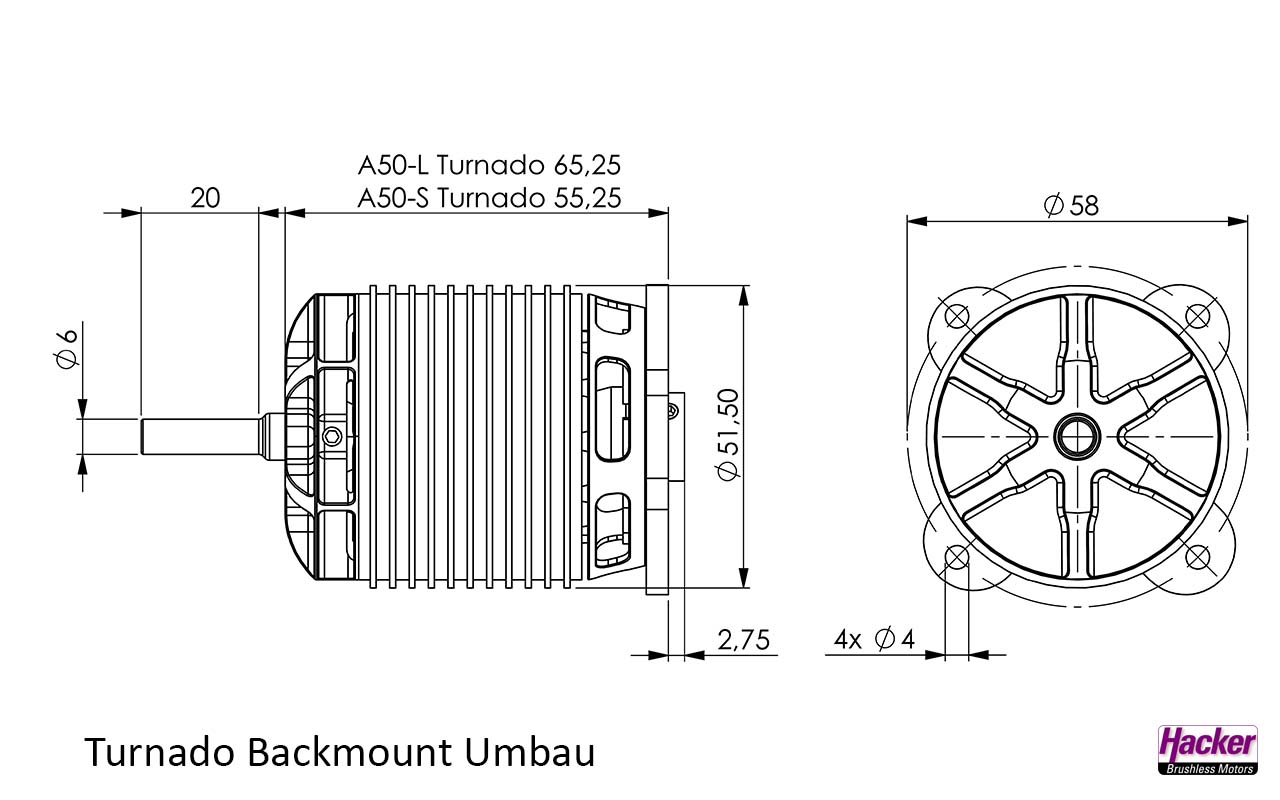

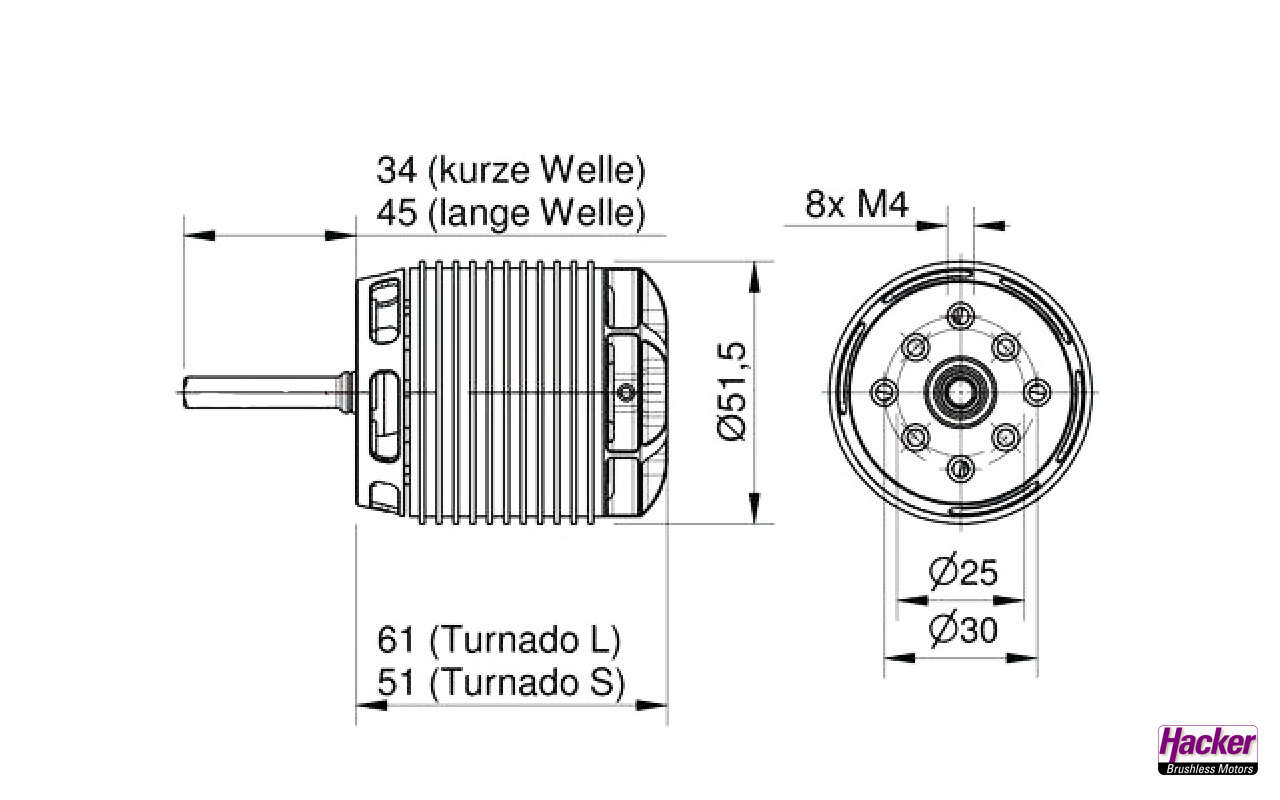

| Dimensions and weight | |
| Weight [g] | 445 |
| Length [mm]/[in] | 61 |
| Outer diameter [mm]/[in] | 51.5 |
| Shaft diameter [mm]/[in] | 6 (internal: 8) |
| Delivery contents | |
| Prop Adapter | Yes |
| Mounting cross | No |
| Gold plug mm (recommended) | 4 |
| Backmount mountable | Optional |
| Front mountable | Yes |
Video
A 5m Glasflügel Libelle with A50-10L Turnado at 6S LiPo
Documents
