A05-13S kv3200
Product description and features

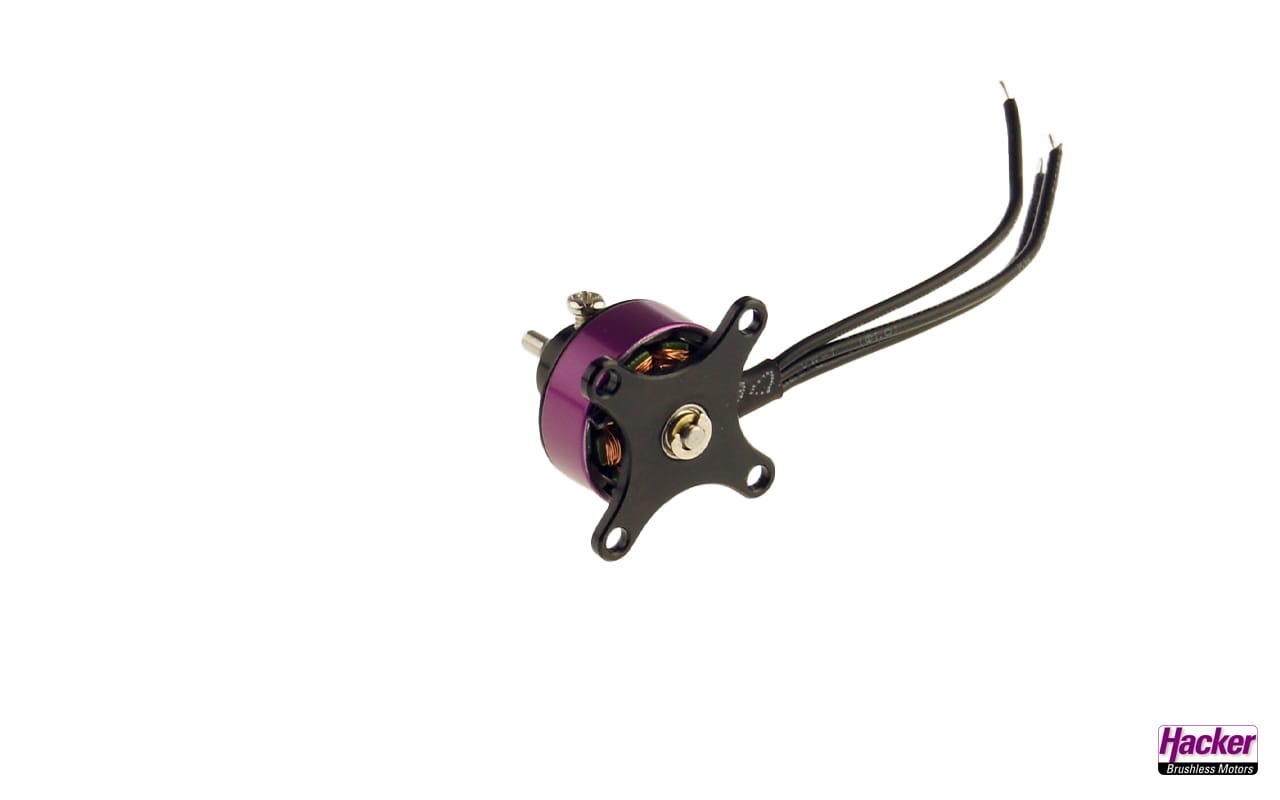

The A05 is the smallest motor from the house of Hacker Motor GmbH.
This small weight-optimized high-end motor with a weight of only 7.5 g is often used in models around the 150g class.
The 12-pole outrunner is connected directly to the controller because it depends in this weight class on every gram.
Description
Powerful drive for indoor models up to 150g
Accessories
You can find suitable controllers, batteries and a suitable air screw in the Accessories tab.
Delivery contents

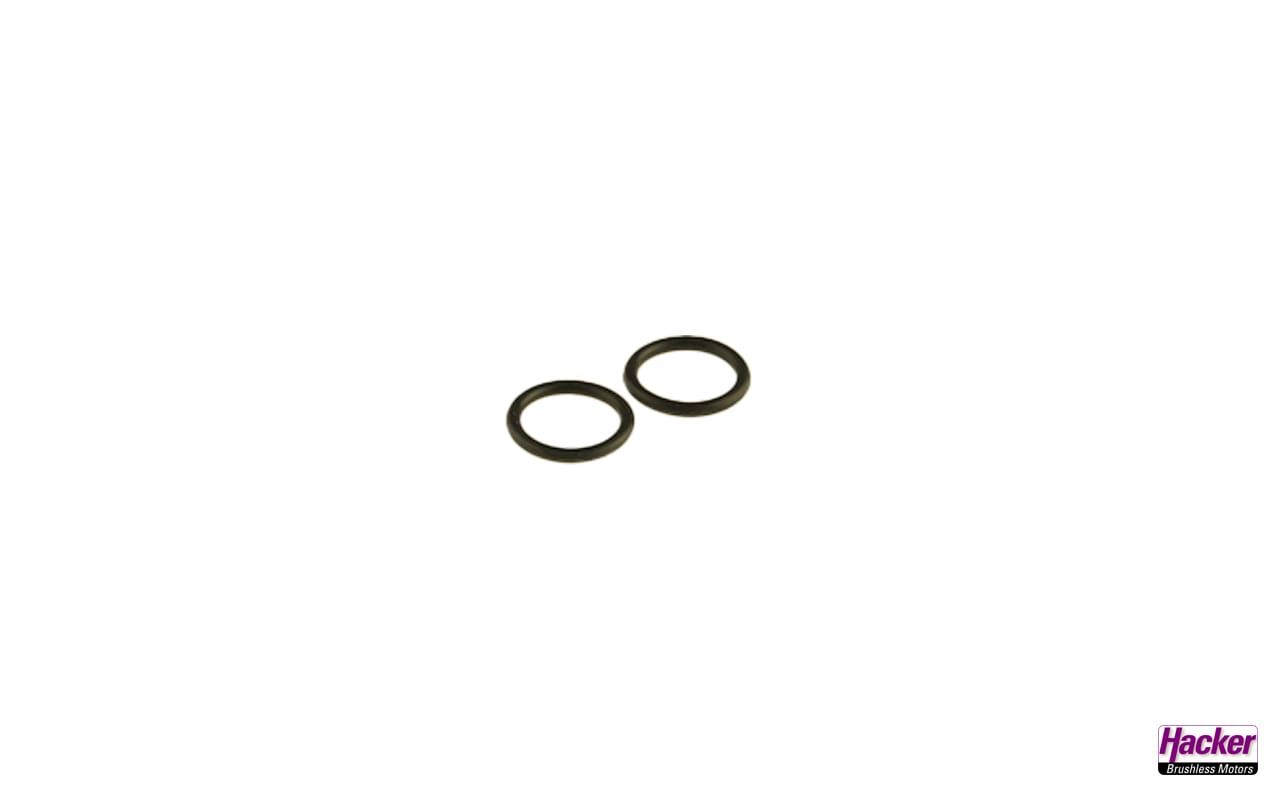

1x A05-13S kv3200, 2 O-rings, 1 instruction manual

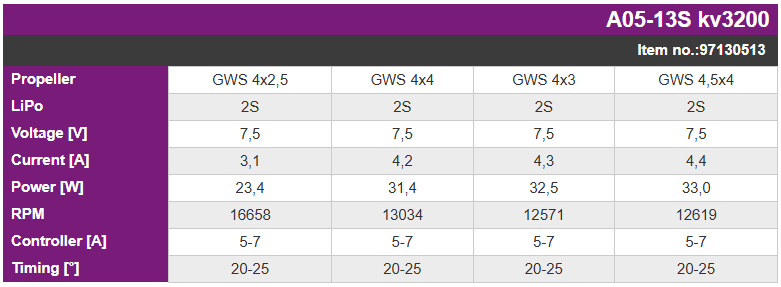

Drive Recommendations
Product Data
| Specifications | |
| max. power range [W] (max.15 sec.) | 35 |
| Poles | 12 |
| Idle current (I0) at 8.4V [A] | 0.3 |
| Internal resistance (Ri) [Ohm] | 0.4 |
| Recommended timing [°] | 20 – 25 |
| Switching Frequency [kHz] | 8 |
| Controller recommendation [A] (depending on setup) | 4 – 7 |
| Idle speed per volt (kv) | 3200 |

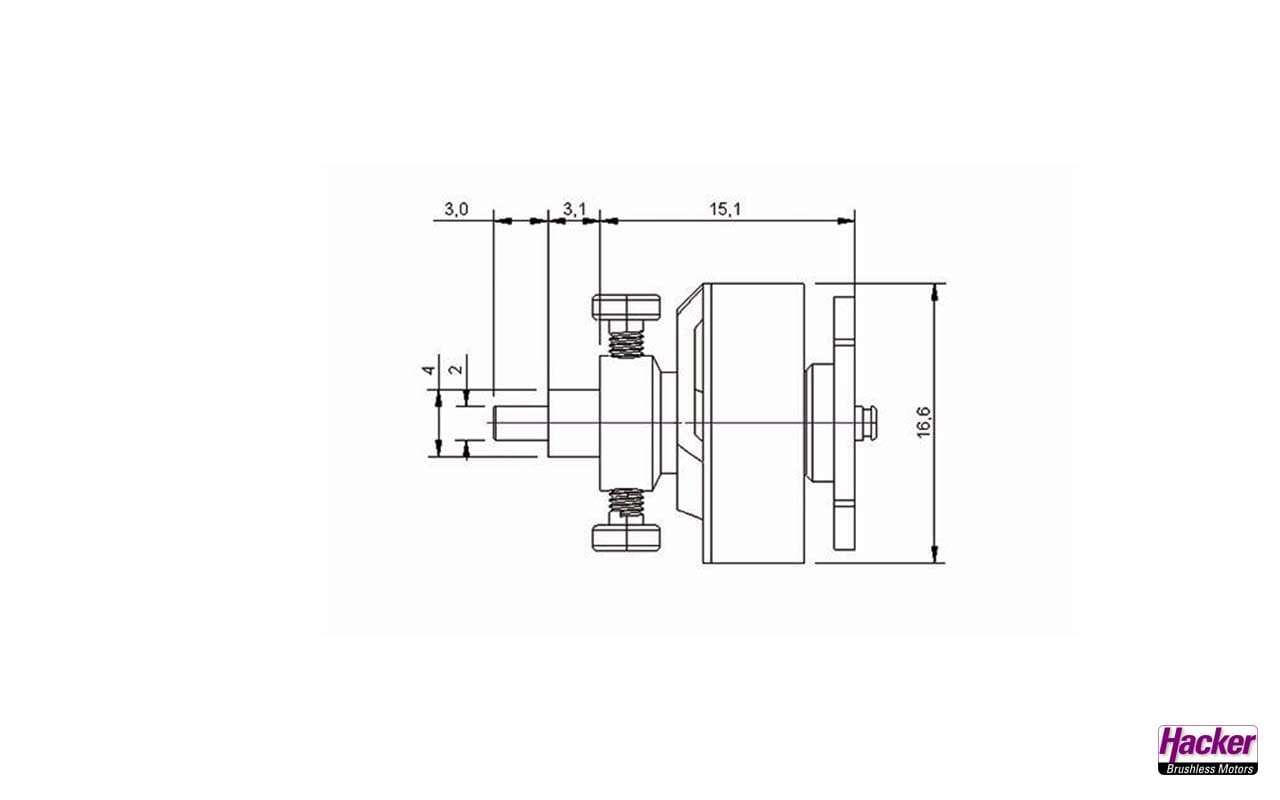

| Dimensions and weight | |
| Weight [g] | 7.5 |
| Length [mm]/[in] | 15 |
| Outer diameter [mm]/[in] | 16.6 |
| Delivery contents | |
| Prop Adapter | Yes |

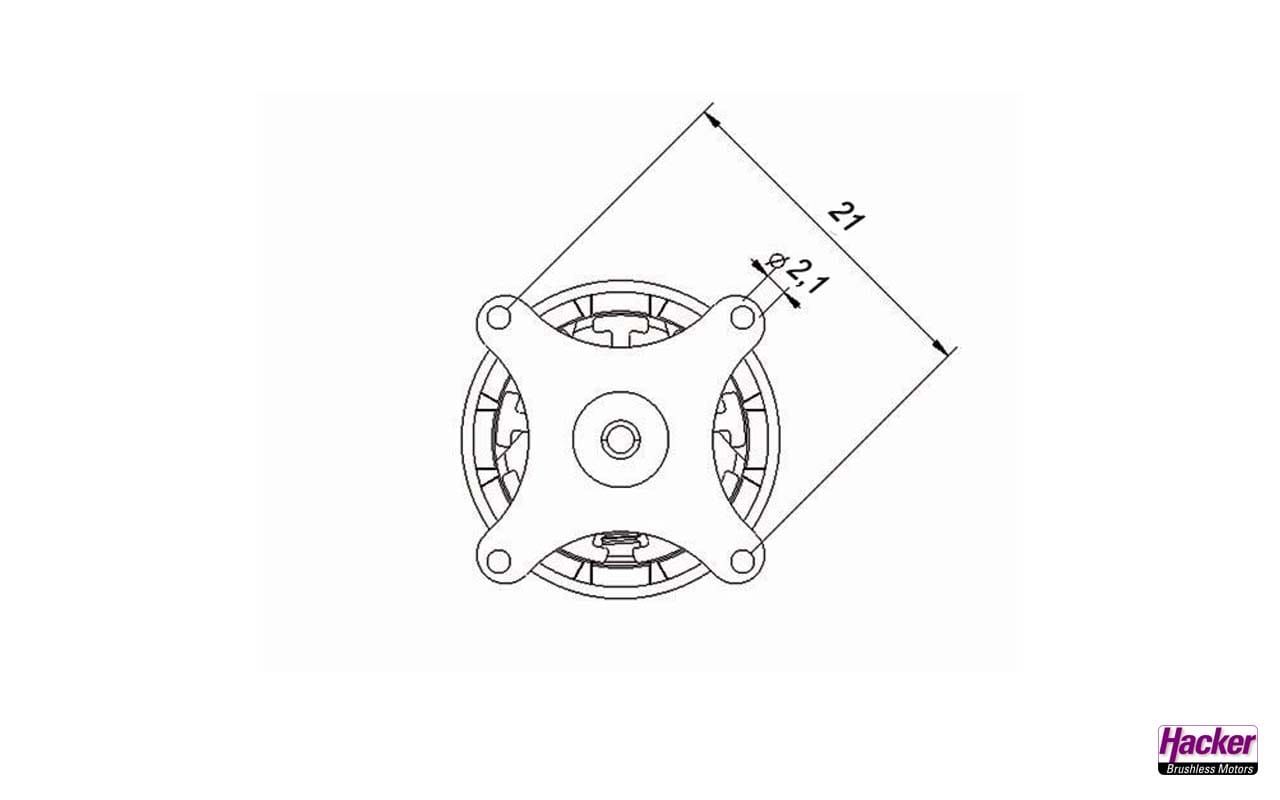

| Mounting cross | Yes |
| Gold plug mm (soldered) | No |
| Gold plug mm (recommended) | Direct soldered |
| Back mountable | Yes |
| Front mountable | No |
